Dual-Mode Phase Shifters
Dual-Mode Phase Shifters
Economical and Compact
Latching reciprocal dual-mode phase shifters provide 360+ degrees of phase shift for phased arrays at a low cost. Shown here are some of the dual-mode phase shifters developed by MAG. Click HERE for downloadable brochures detailing dual-mode phase shifters and other MAG products.
X-Band Phase Control Modules
MAG produced and delivered over 140,000 X-Band PCMs, the heart of which are MAG's dual-mode latching ferrite phase shifters with polarization diversity capability.

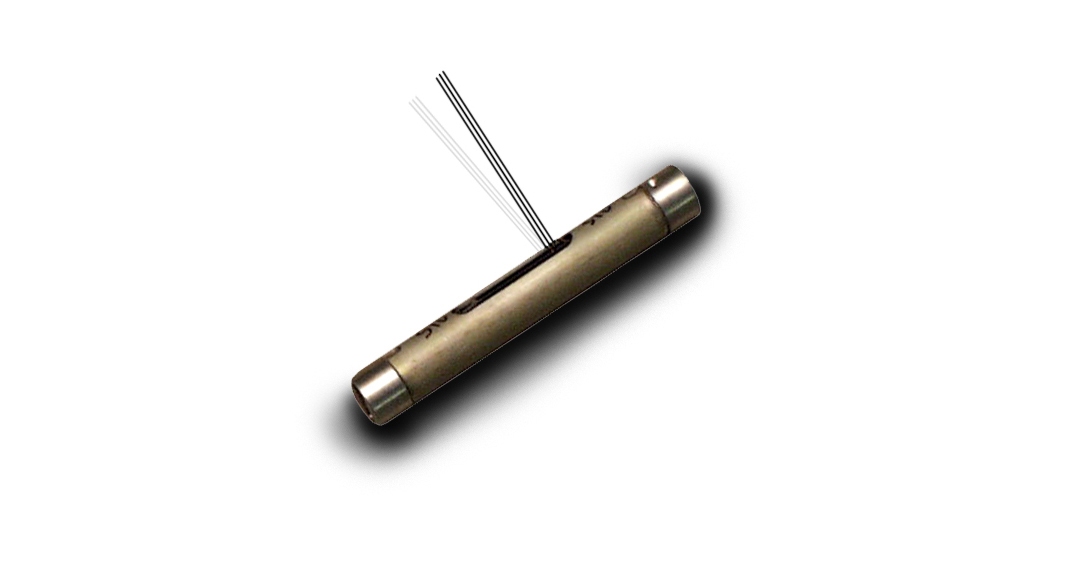

Ku-Band Dual-Mode Phase Shifters
MAG designed and provided lightweight Ku-Band dual-mode latching ferrite phase shifters for a synthetic aperture radar deployed on a UAV platform.

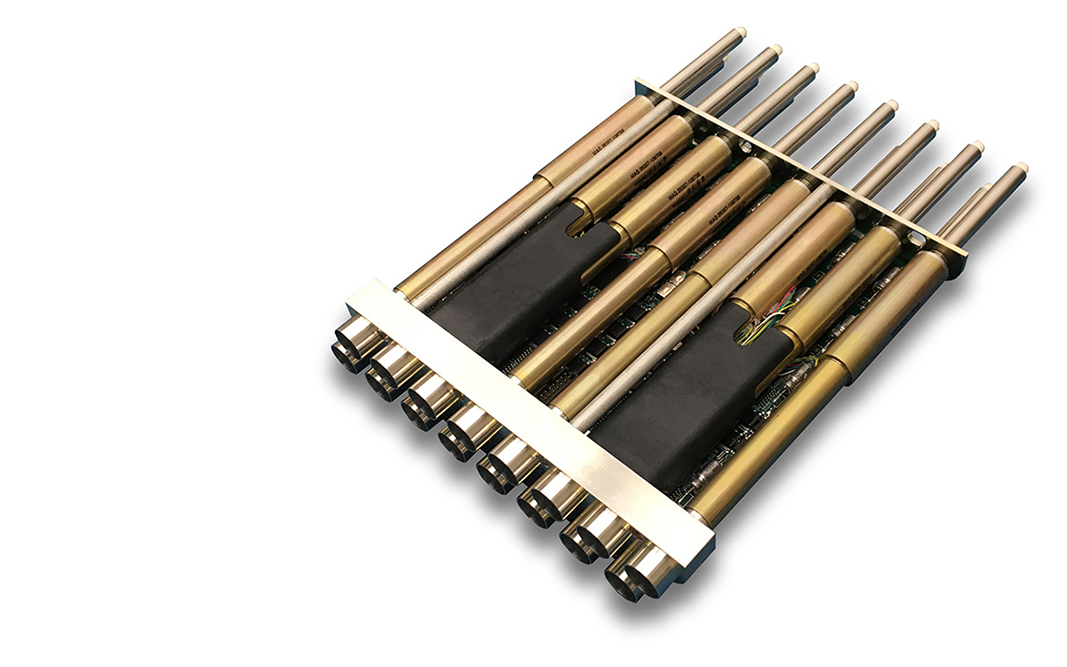

X-Band 16-Channel PCMs / Pol Switches
These 16-channel modules incorporate both phase shift and polarization switching functions. Polarizations include LHCP, RHCP, horizontal and vertical linear, and some elliptical polarizations.

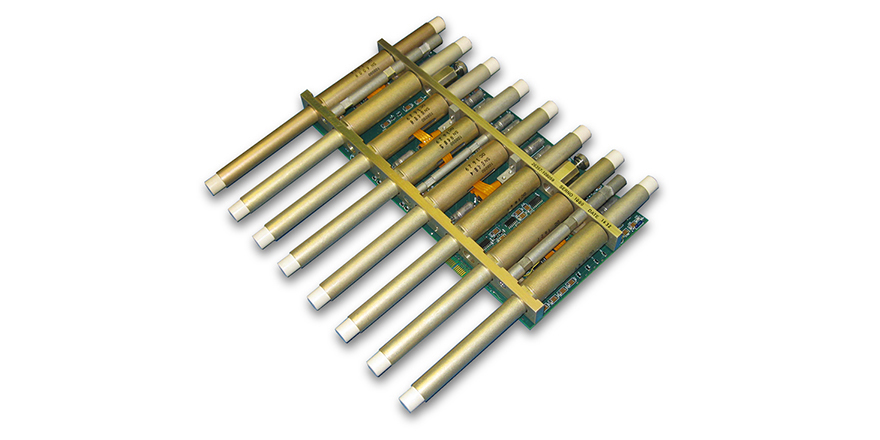

C-Band 8-Channel PCMs
MAG designed and built several thousand C-Band PCMs, using one dual-mode phase shifter per channel. Eight phase shifters are mounted to and controlled by a single driver.

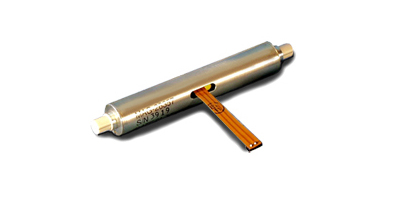

X-Band Dual-Mode Phase Shifters
MAG provides X-Band dual-mode phase shifters for use on a widely deployed ship-based system. The units were qualified at shock levels in excess of 60 g.
X-Band Reflectarray Elements
MAG designed and built over 19,000 polarization diverse X-Band reflectarray elements for a radar simulator. In addition, MAG provided a horn and feed network for the system.

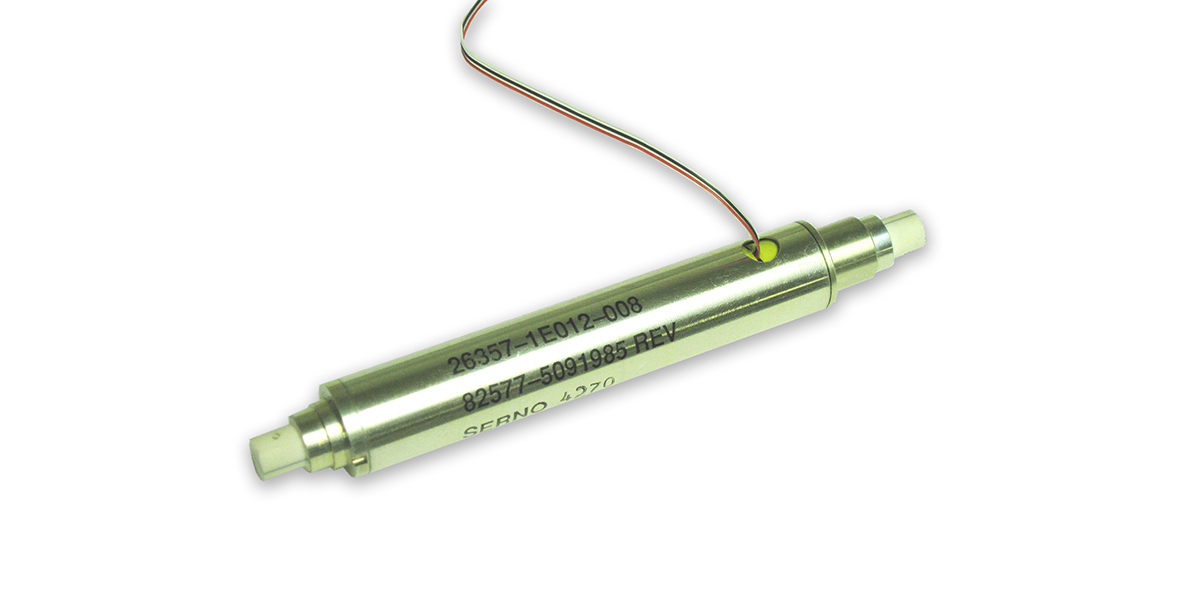

XL-Band Dual-Mode Phase Shifters
This MAG phase shifter employs a dielectric plug each end, allowing interface to coaxial line, waveguide, stripline, or free space. Its design allows it to meet signal rotational requirements end to end.

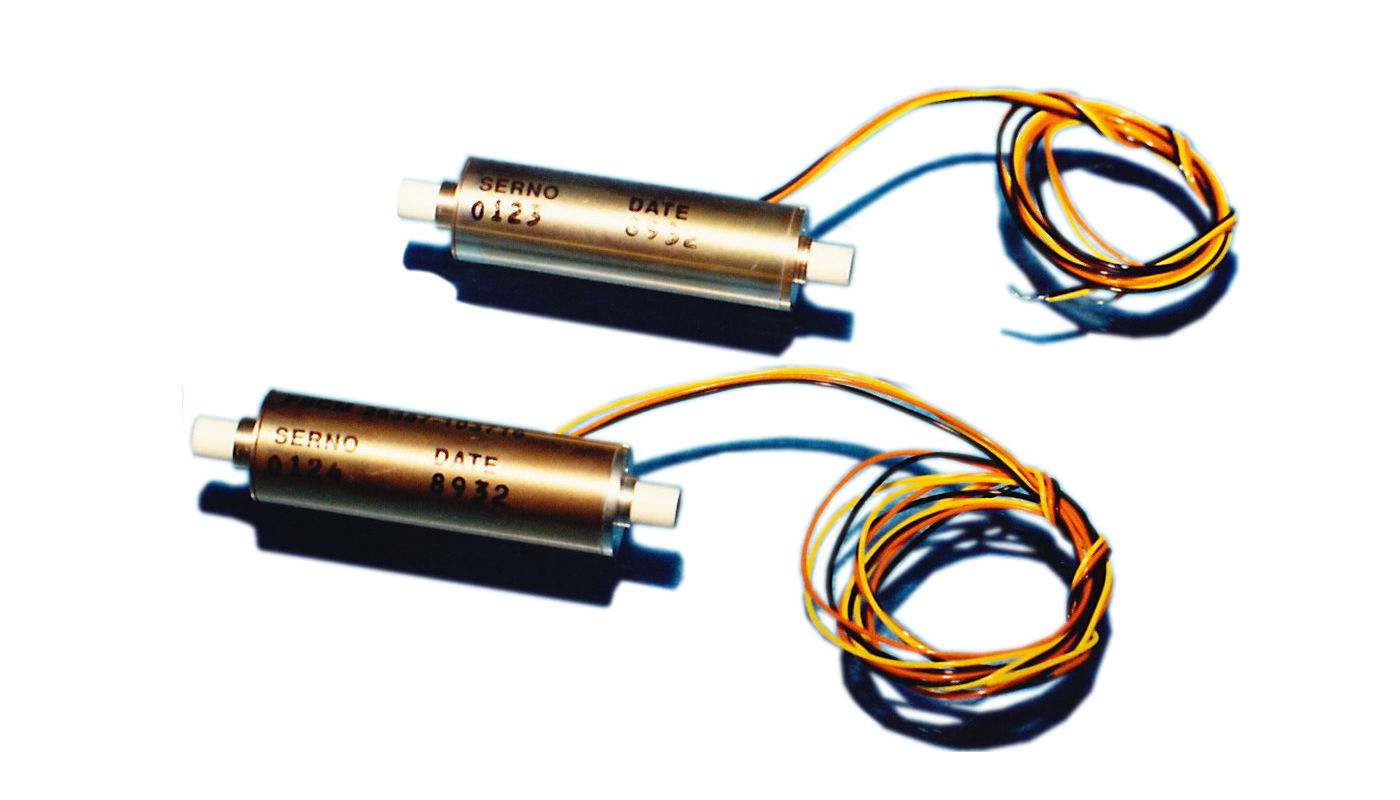

C-, X-, and Ku-Band Phase Shifters
MAG designed and built dual-mode phase shifters at C-Band, X-Band, and Ku-Band for a family of test range antennas. MAG also designed and built the antennas.
X-Band 4-Pack Dual-Mode Modules
For a test range instrumentation antenna designed and built by MAG, dual-mode phase shifters were packaged four to a driver. This allowed quicker installation and servicing.
