Fulfilling a Variety of RF System Needs with a Wide Array of Solutions

Rotary-Field Phase Shifters

Power and Performance

Rotary-field phase shifters provide modulo-360 degree phase shift with high power capability and low phase error. Shown here are some of the rotary-field phase shifters developed by MAG. Click HERE for downloadable brochures detailing rotary-field phase shifters and other MAG products.

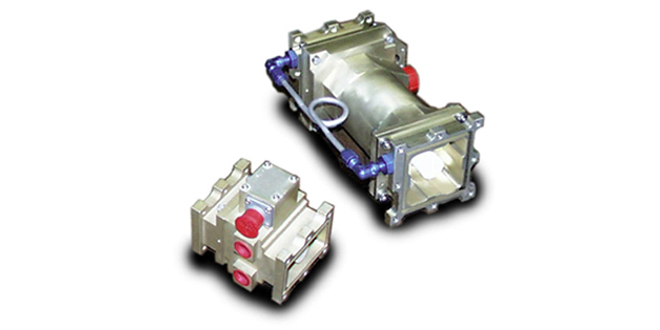

S-Band Beam Offset / Steering Phase Shifters

MAG is the design authority and OEM for S-Band beam steering and beam offset phase shifters for a surveillance radar, supporting the program since the 70s; continuing to this day.

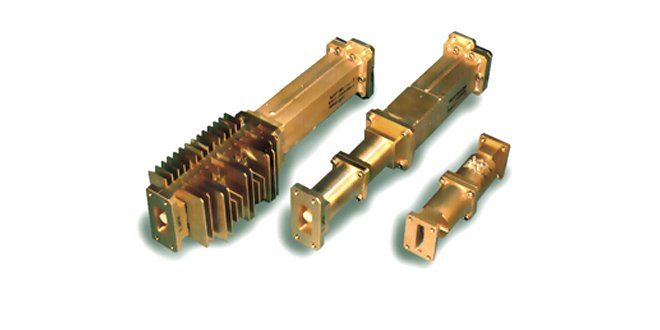

X-Band Phase Shifters and Delay Lines

MAG provides X-Band high and low power rotary-field phase shifters and high power delay lines for several synthetic aperture radar platforms, still found in spec after many years.

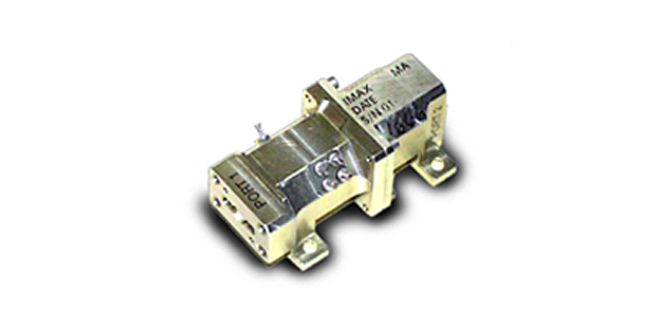

Ku-Band Rotary-Field Phase Shifters

MAG provided Ku-Band rotary-field phase shifters for an airborne radar, and was part of the team winning the Collier Trophy in support of this application.

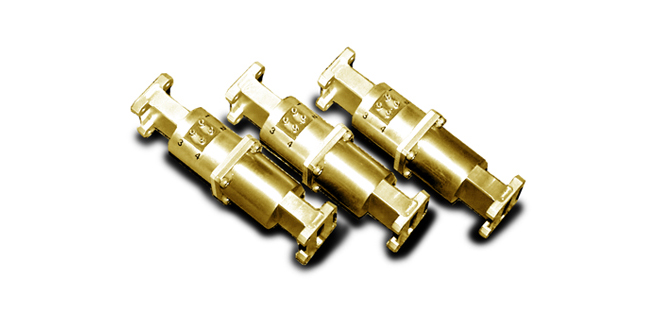

X-Band Rotary-Field Phase Shifters

MAG provided X-Band rotary-field phase shifters for a synthetic aperture / ground mapping radar, used in humanitarian missions in addition to its military role.

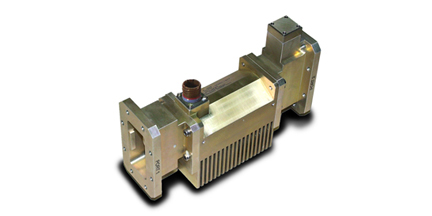

S-Band Rotary-Field Phase Shifters

MAG provides S-Band rotary-field phase shifters for a 3D air defense radar, deployed in NATO / Allied countries. MAG was the OEM the 80s, and continues support to this day.

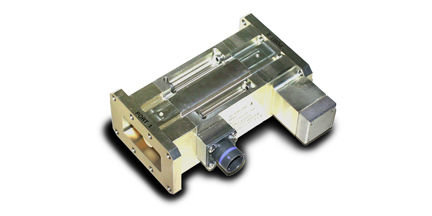

C-Band Rotary-Field Phase Shifters

MAG provides C-Band rotary-field phase shifters for use in a ground-based 3D mobile air defense radar. The same design is used in a ship-based multimode radar.

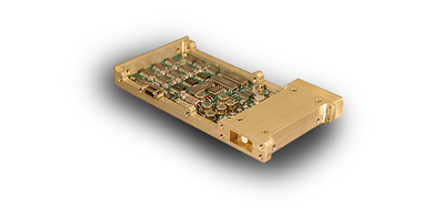

X-Band Latching Rotary-Field Phase Shifters

MAG provided latching rotary-field phase shifters for a 3D air defense radar with Modulo-360 operation and excellent power handling without a holding current requirement.

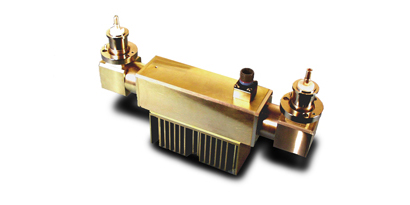

L-Band Rotary-Field Phase Shifters

MAG provides high performance reduced cross-section L-Band phase shifters fulfilling stringent packaging requirements in a ship-based 3D air defense radar.
